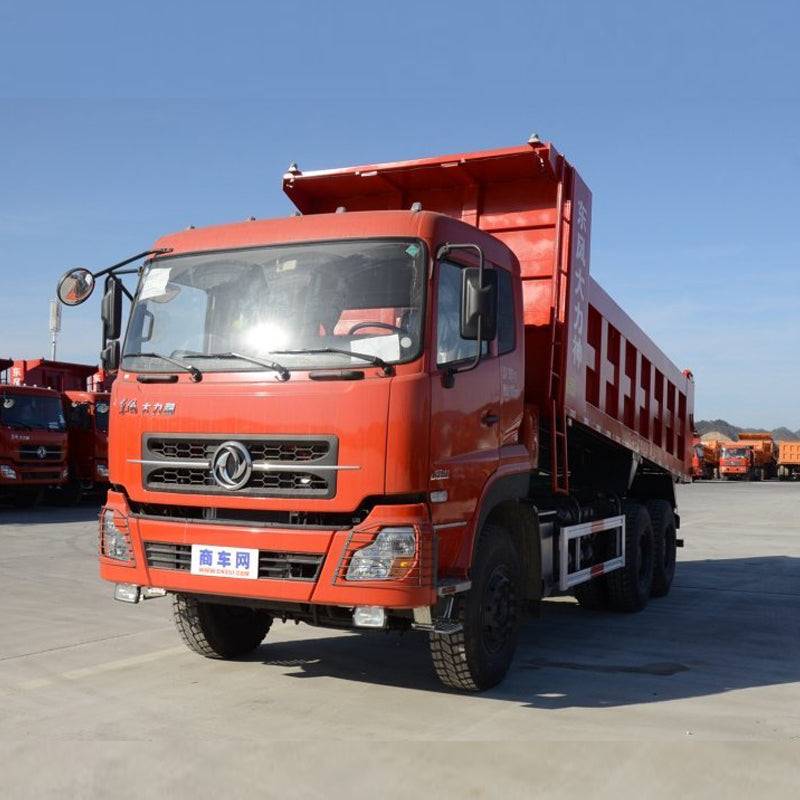

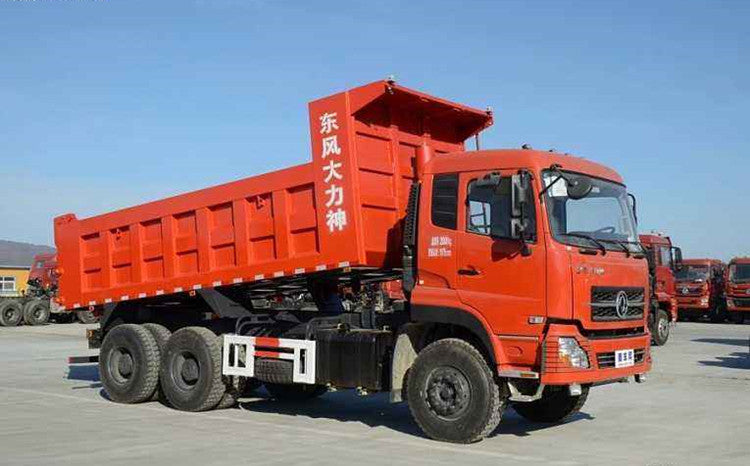

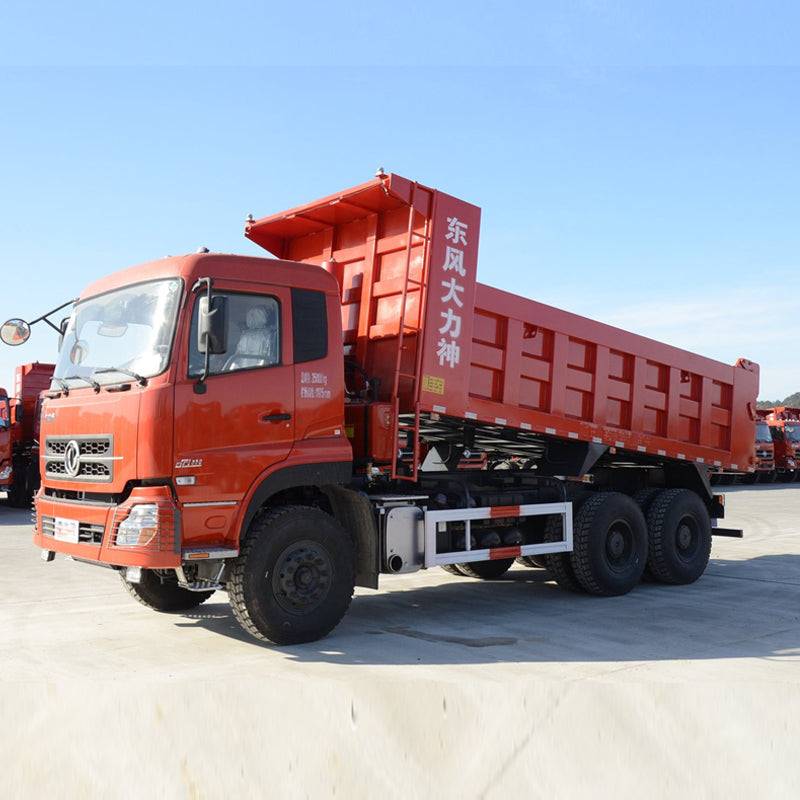

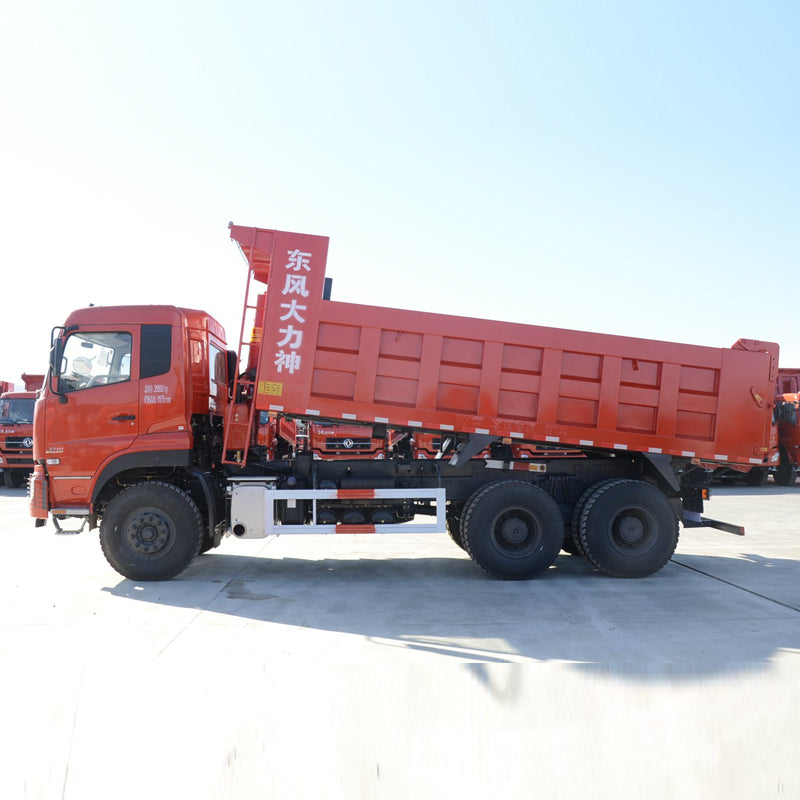

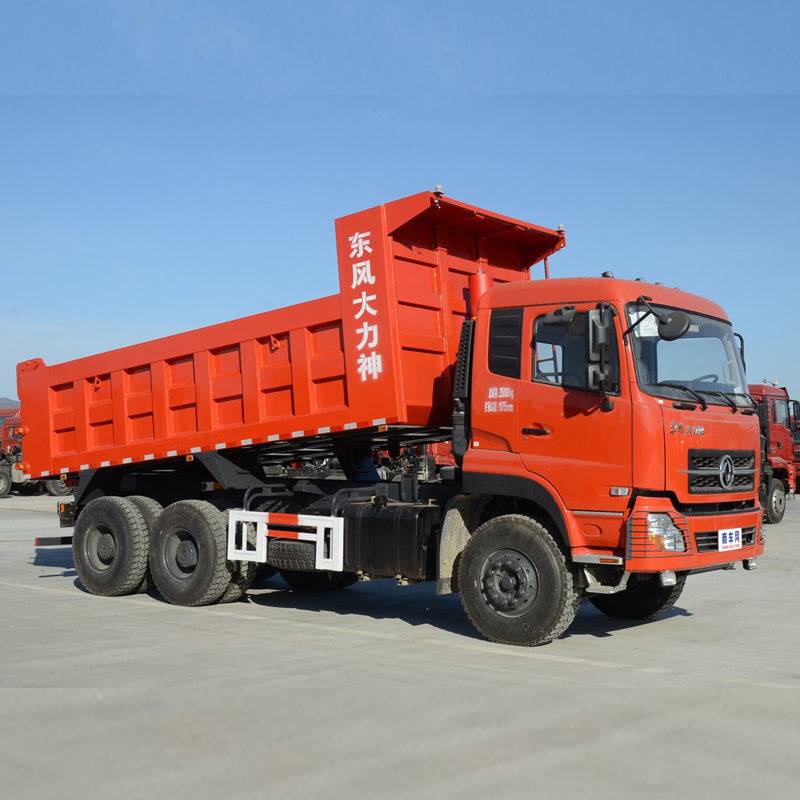

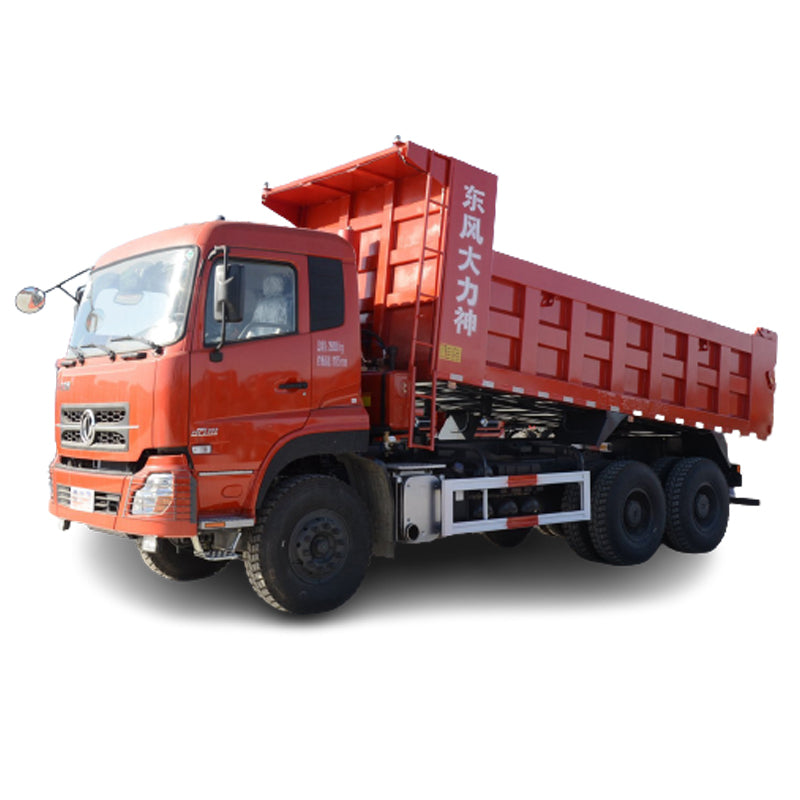

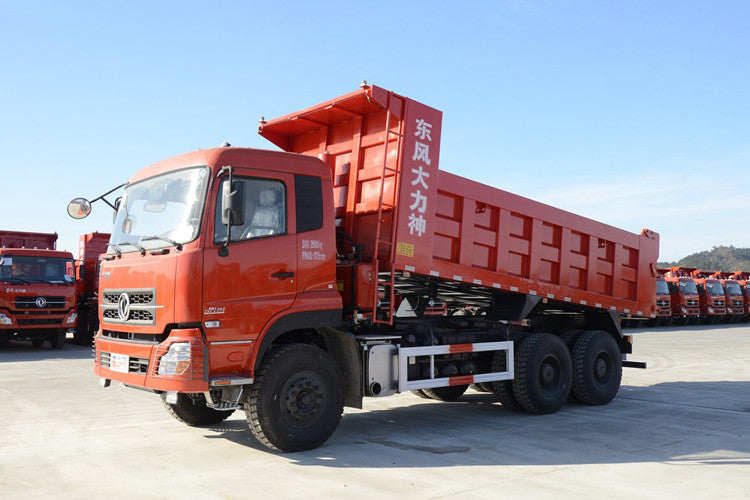

Dump truck, known also as a dumping truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials (such as dirt, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery.
Model: |
CLW3251A12 |
Number of axes : |
2 |
Total Weight: | 25000kg | Curbe Weight: | 18600kg |
Size of Outter: |
8630*2490*3300(mm) |
Tires: |
10.00R20 |
WheelBase: | 4350+1350mm | Fuel tank: | 150L |
Transmission: |
10-Gear Gearbox |
Front axle/ Rear axle: |
5T/10T+10T |
Top speed: | 100km/h | Tank material: | High strength steel (Bottom 4mm sides 3mm) |
Fuel Type: | Diesel | Emission Standard: | Euro 3 |
Engine Model: |
ISD245 33 / 245HP |
Power: | 180kw |
Displacement: | 6.7L |
Standard Equipments: |
Dump truck the cargo box is made of high-quality carbon steel plate, 4mm at the bottom of the cargo box, 3mm at the side of the cargo box, and a central hydraulic cylinder (replaced within one year). |
