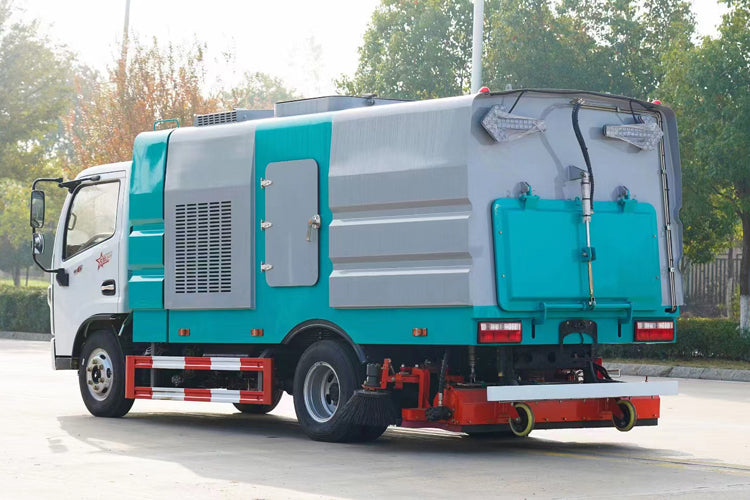

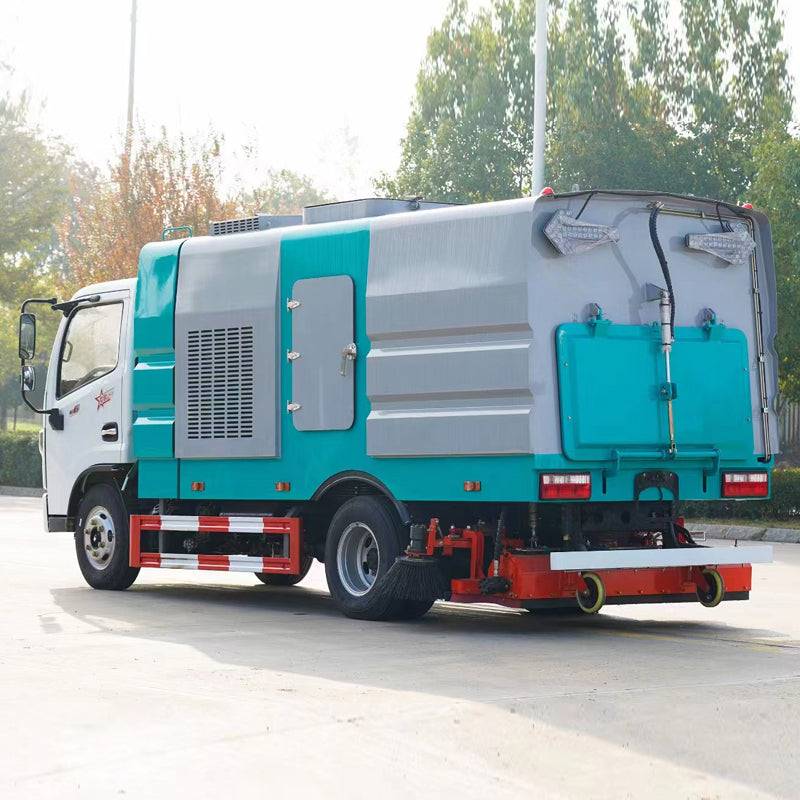

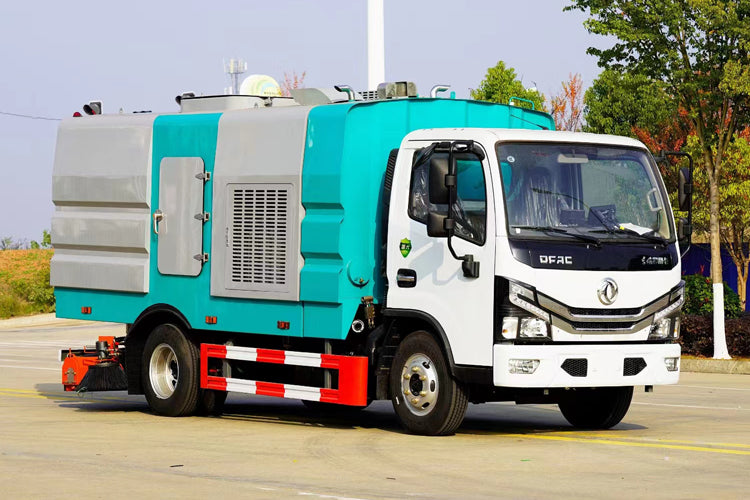

Dongfeng 4x2 road vacuuming truck 1 square water tank 4 square dustbins
Dongfeng 4x2 road vacuuming truck 1 square water tank 4 square dustbins
Dust collector is a new type of road sweeping sanitation vehicle with dust filtering system. It has changed the traditional way of road sweeper with disc brush rolling and sweeping, but all adopt the working principle of negative pressure direct suction to complete the operation, through the vehicle's dust filtering system and automatic pulse vibration dust removal system, effectively reduce dust pollution, and synchronous filtration of respirable particles, improve air quality, reduce the content of respirable particles in the air, and improve the people's respiratory health.
|
Model : |
EQ1040D12 |
Water tank: | 1000L |
| Total Weight: | 7360kg | dustbin: | 4 cubic |
| Size of Outter: | 6200*2000*2590(mm) | Curbe Weight: | 5100kg |
| WheelBase: | 3300mm | Tire Size: | 7.00R16 |
| Transmission: | 5-Speed | Tire Number: | 6 |
| Front/Rear Axle: | 1.8T/3.5T | Brake System: | Air Brake |
| Fuel Type: | Diesel | Emission Standard: | Euro 2 |
| Engine Model: | CY4100Q | Power: | 60kw/82HP |
| Displacement: | 2800ml |
Number of axes: |
two |
| Standard Equipments: |
|
Vacuum truck for dust The main working place of the suction truck is cement factory, steel plant, coal plant and other dusty places, the suction effect is remarkable, a set of electromagnetic control valve, 2 hydraulic lifting cylinder, 4 electromagnetic pulse valves, 8 dust filter cylinder, a set of suction box, self-made main suction plus left and right side suction, 4 height adjustable suction nozzle wheel. |
