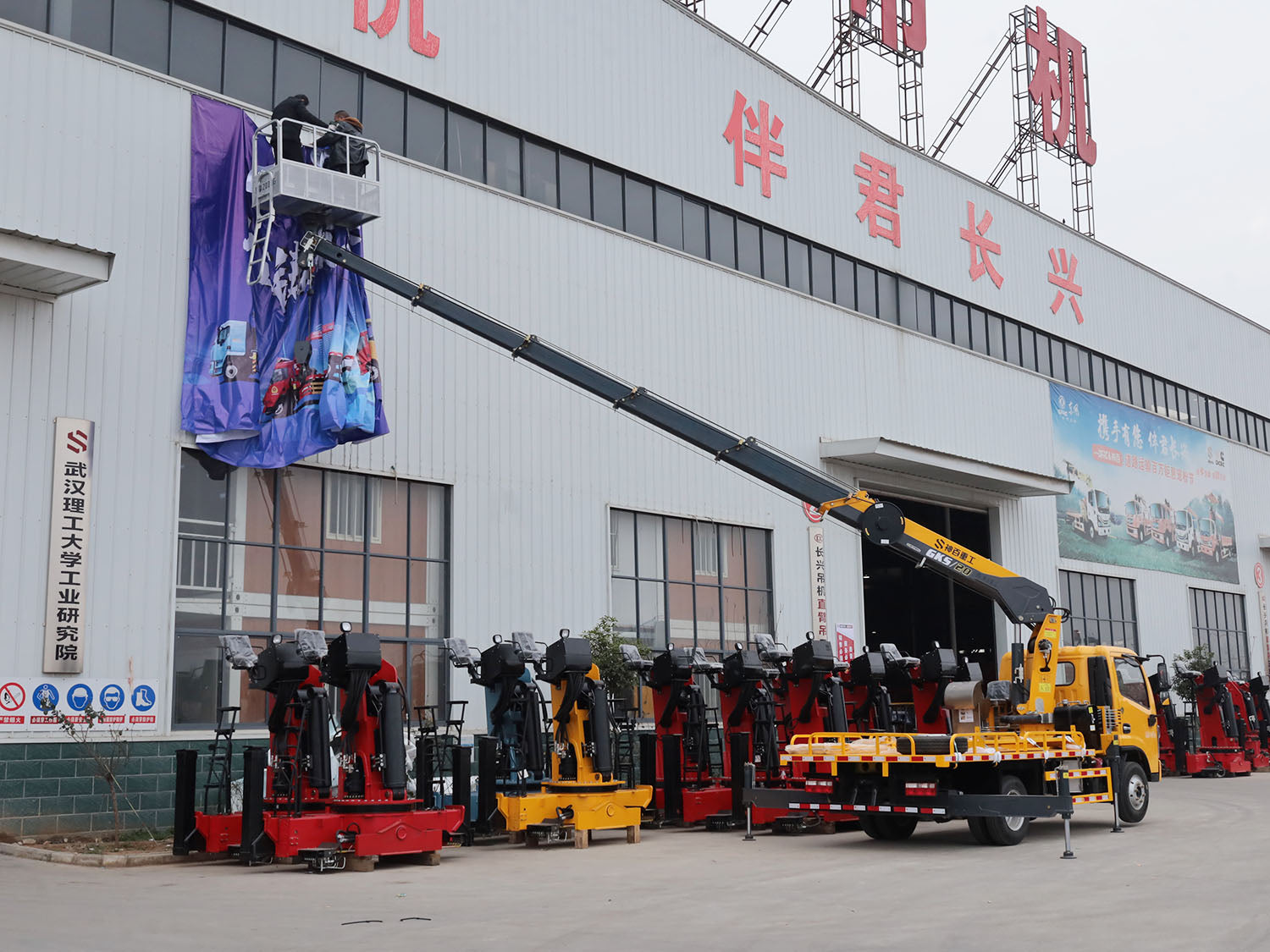

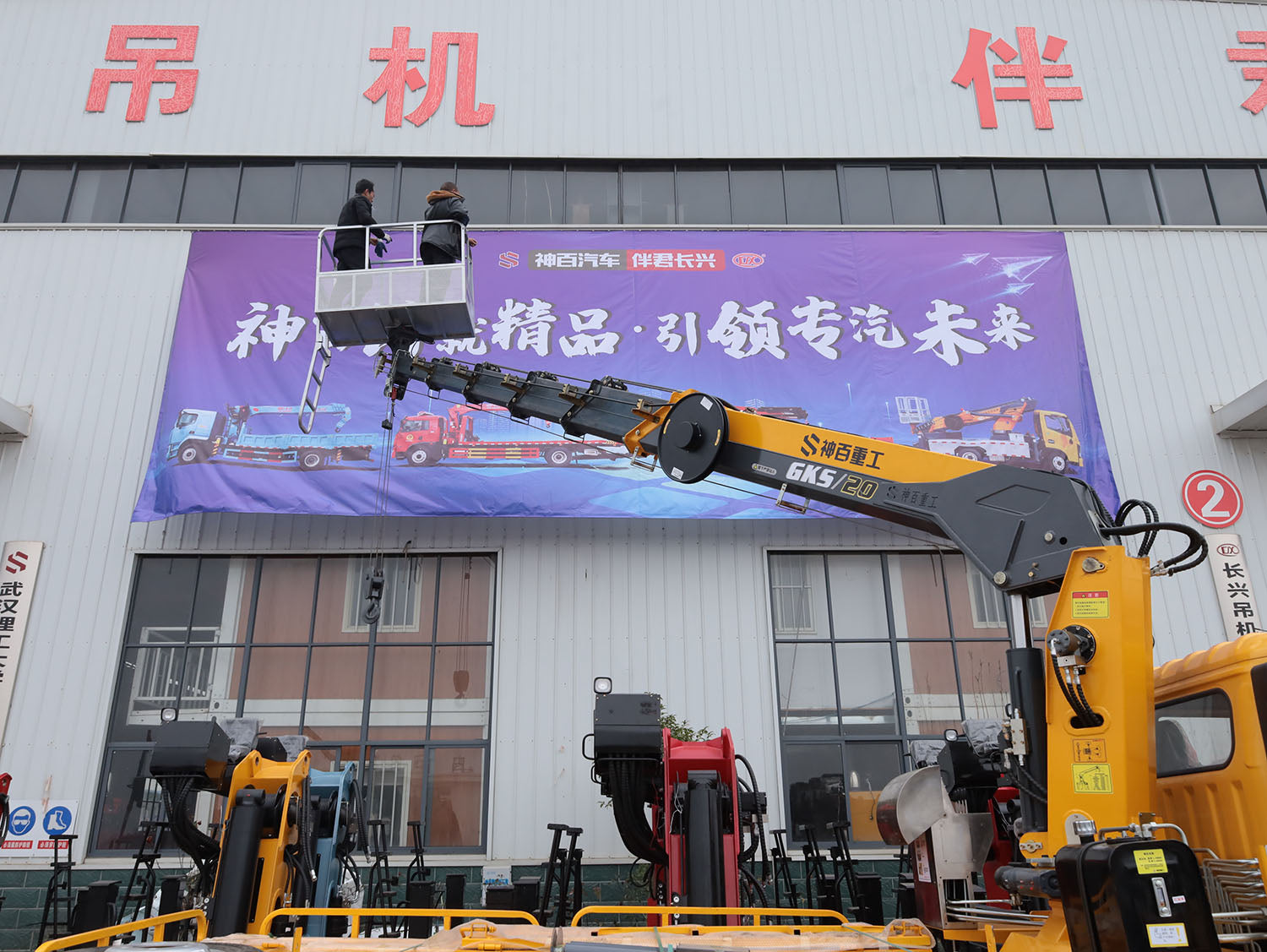

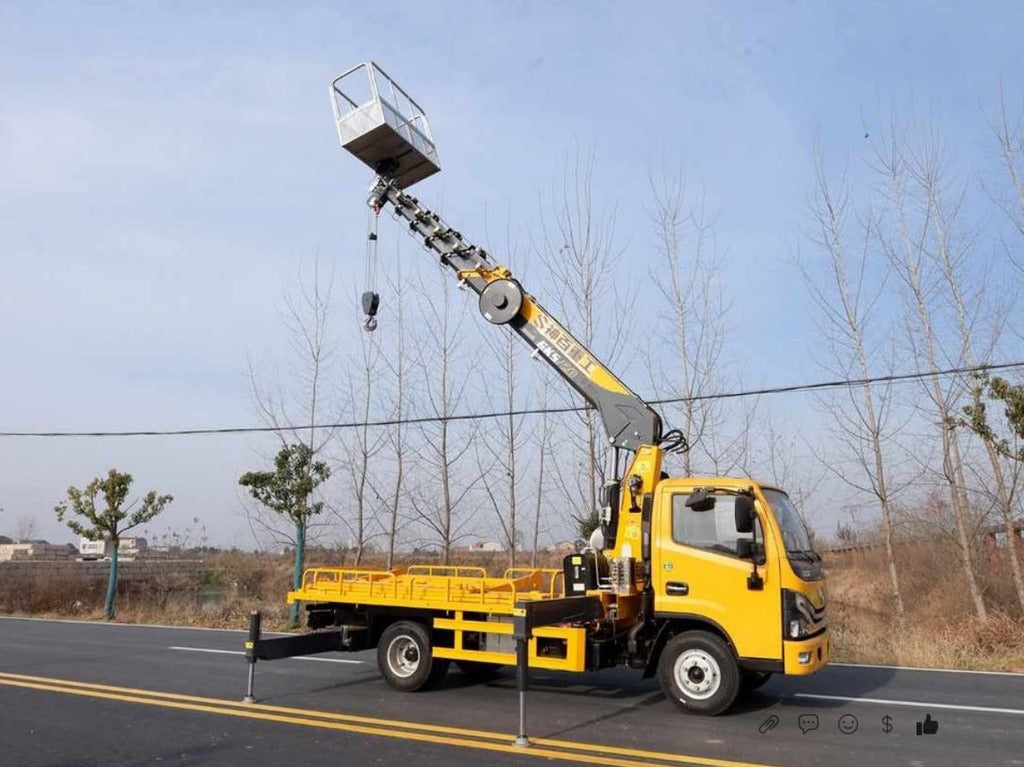

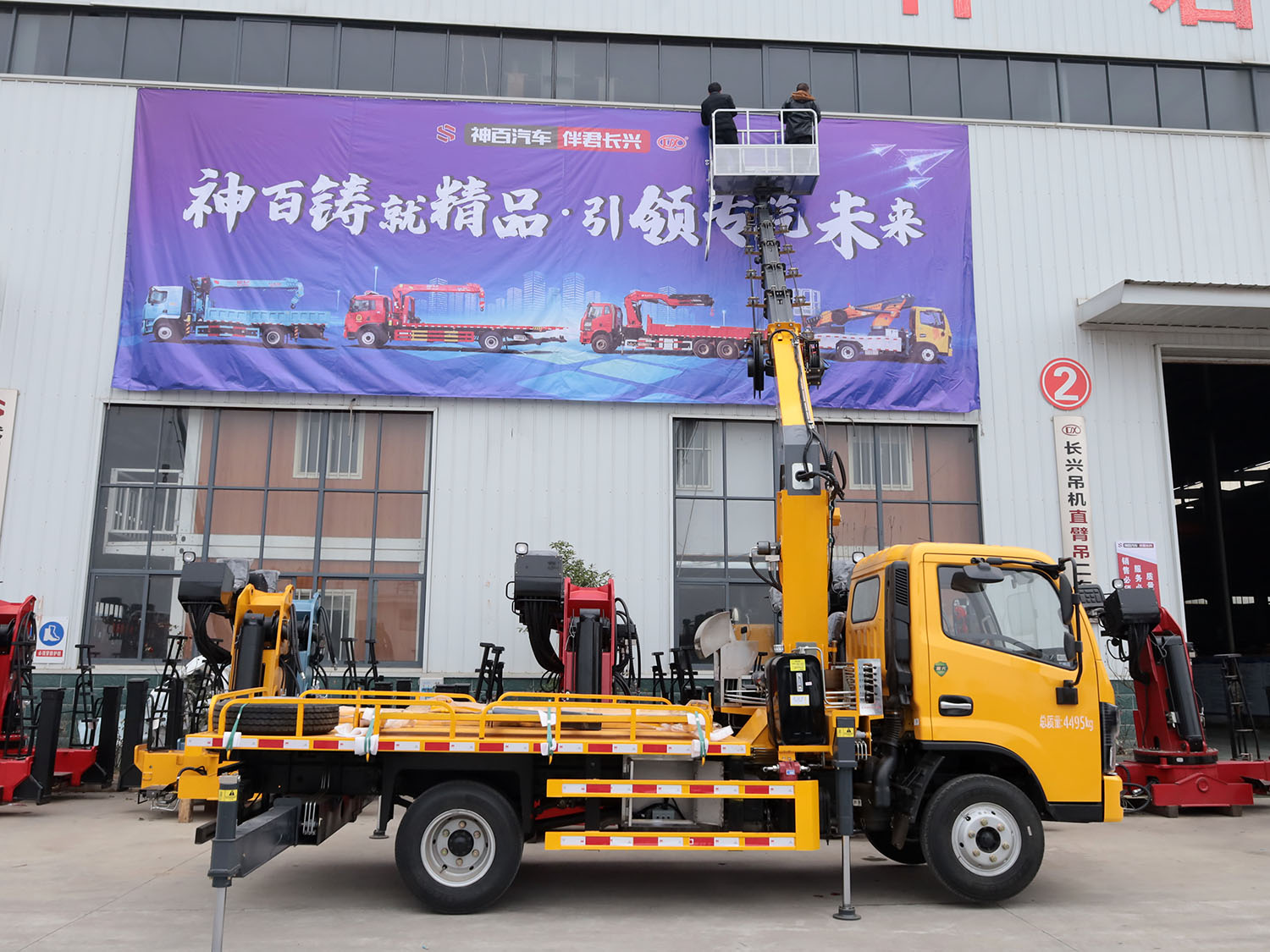

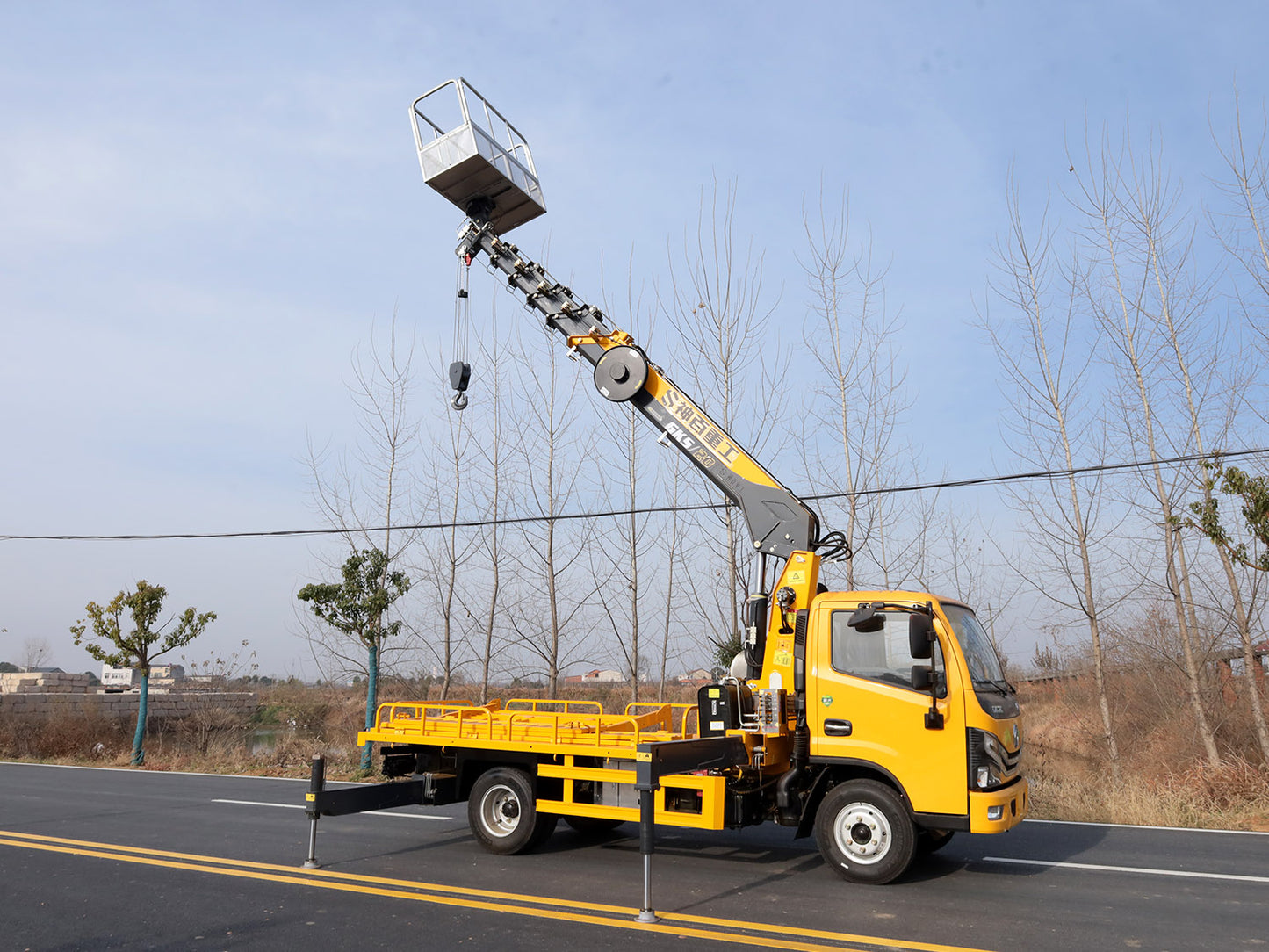

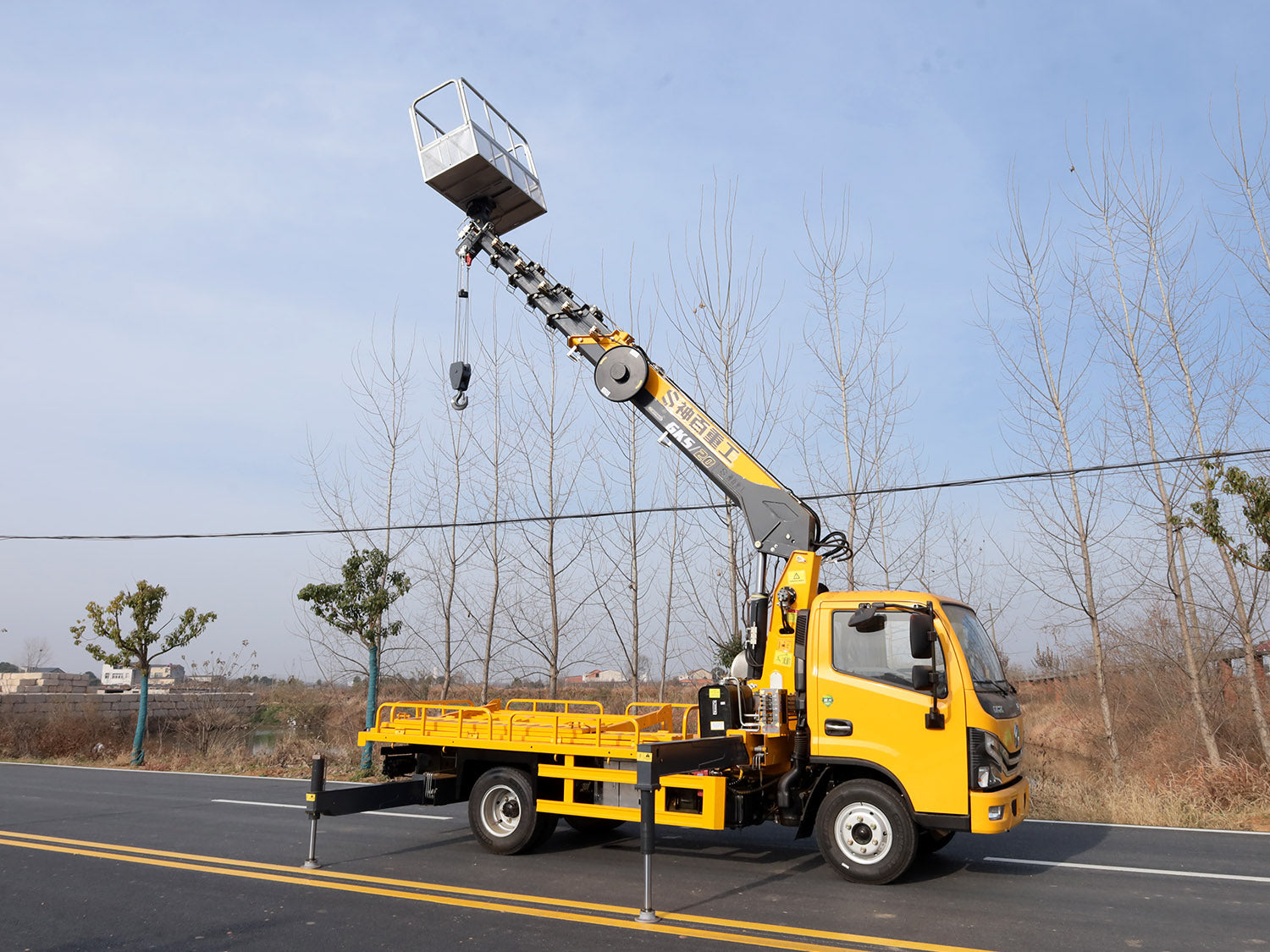

ISUZU 20m 3-in-1 Aerial Work

Basic parameters of vehicle

Chassis Brand

ISUZU

Drive Type

Left Hand Drive

Vehicle Size(mm)

5995X2200X2980

G.V.W(kg)

4495kg

Net Weight(kg)

4365kg

Engine Model

4KH1CN6LB

Engine power

120HP(88kw)

Engine displacements

2.999L

Emission Standard

Euro 6

Wheelbase

3360mm

Cab Capacity

2

Transmission

5-speed transmission

Front/Rear Axle

3T/5T

Tyre Size

700R16

Container Size

3300 × 2200 × 550mm

Working angle

360-degree rotation at will

Crane Brand

GKS/20

Maximum lifting height

20M

Maximum lifting weight

5T

Working radius

12M

Platform load rating

200KG

Platform size

1500mmx700mmx1100mm

Quantity of telescopic arm

6-section arm 5-section synchronised telescopic

Operating system

Renowned electronic control system with wireless

remote control

Hydraulic system

Electro-hydraulic proportional valve with infinitely

variable speed control

Hydraulic outriggers

H-type legs, 4 telescopic legs, individually adjustable

safety device

Up and down interlock, limit protection, bi-directional

hydraulic counterbalance valve

Lateral span of front and rear

outriggers

5150mm/4500mm

Longitudinal span of front and

rear outriggers

3400mm

operating method

Centre-operated, intelligent remote control

Maximum lifting capacity

5000kg

Main Winch

5T

Other

a whirlwind
